Max. Current:2A
Max. Voltage:48VDC
Place of Origin:Zhejiang, China
Brand Name:Langir
Model Number:V12
LED:NO
Application:Electric, Home Appliance, Industrial Control
Material:Stainless Steel, plastic, Brass, Aluminum
Structure:Electronic, Mechanical, Electromagnetic
Head Type:Round Head, Square Head, Flat Head, Dome Head

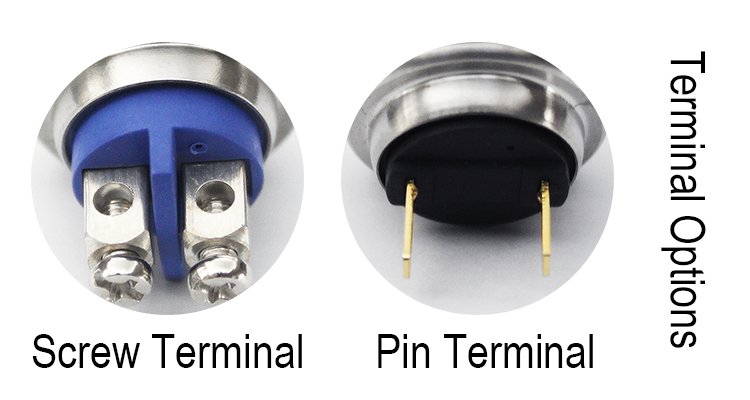

Terminal Type:Pin terminal, Screw Terminal, Plug Terminal
Whether the smart:NO
illuminated Type:ring illuminated, dot illuminated
IP level:IP65
Switch Combination:1NO1NC, 1NO, 2NO2NC

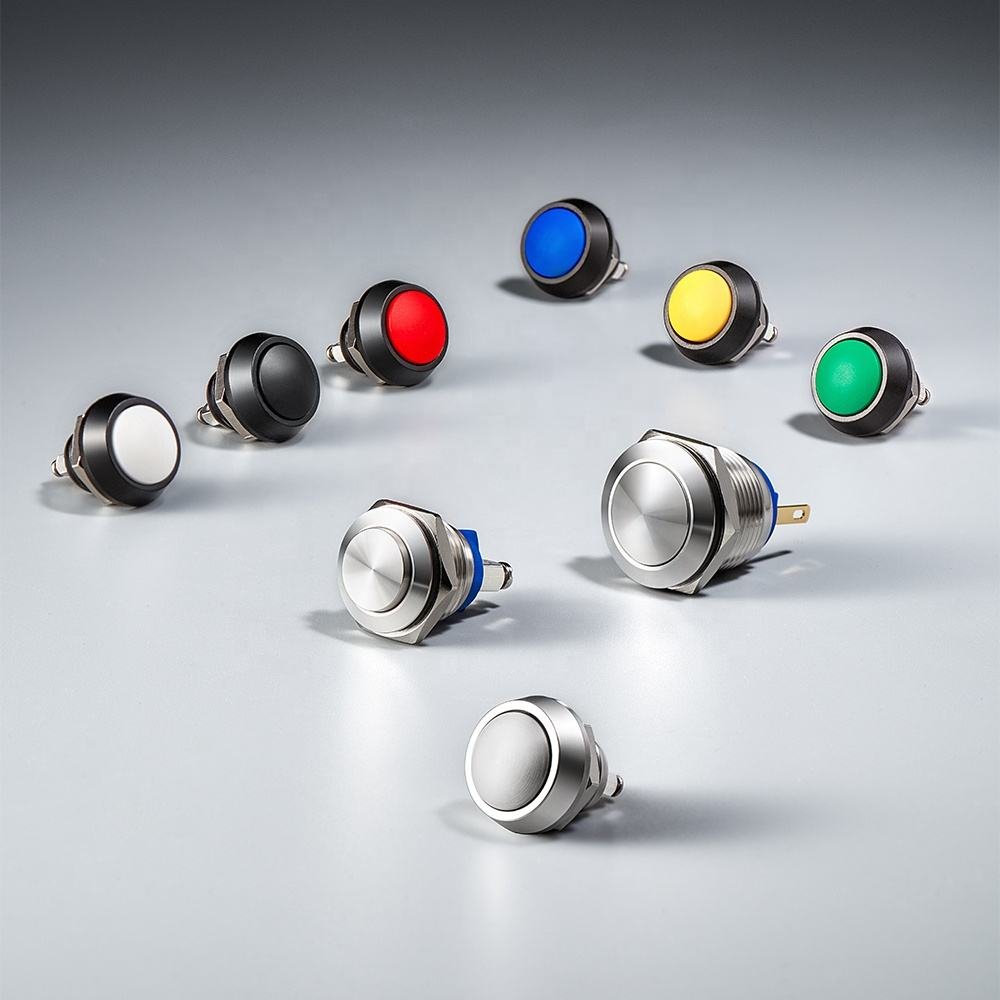

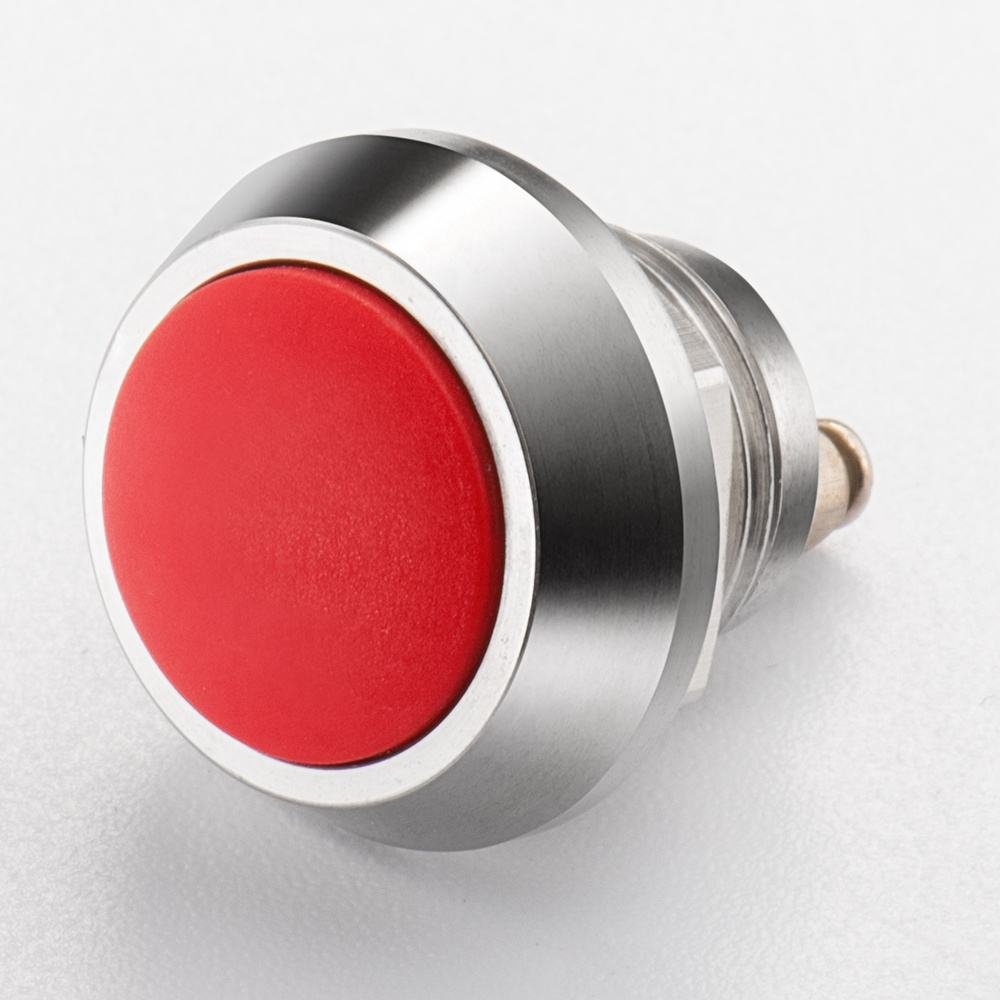

Product name:12mm Push Button Switch
Operation type:Momentory

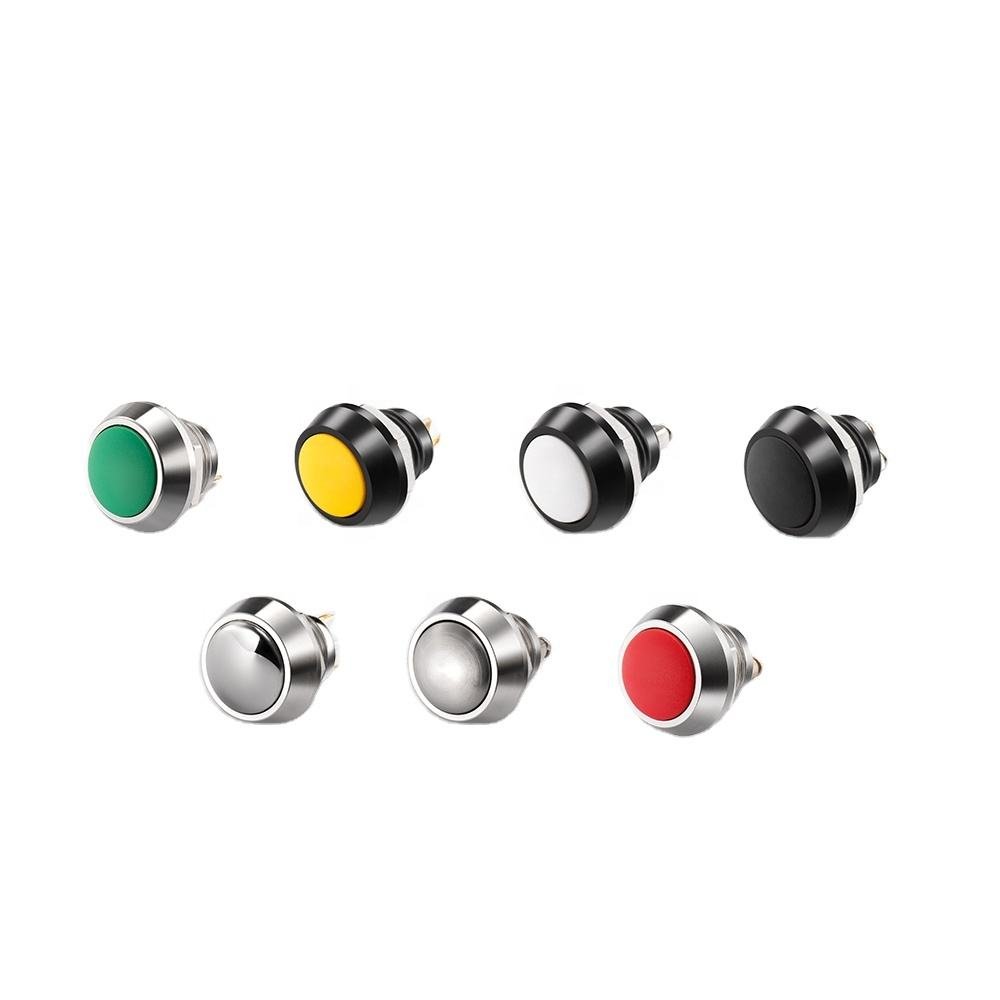

Color:Red Yellow Green Blue White Black

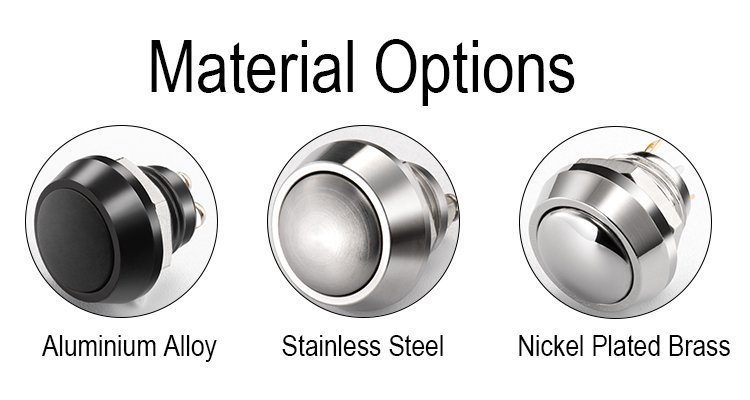

Material:Aluminum/Stainless steel/Nickel plated brass
Max. Switch Rating:2A/ 48VDC
Protection:IK09/ IP65
Function:SPST

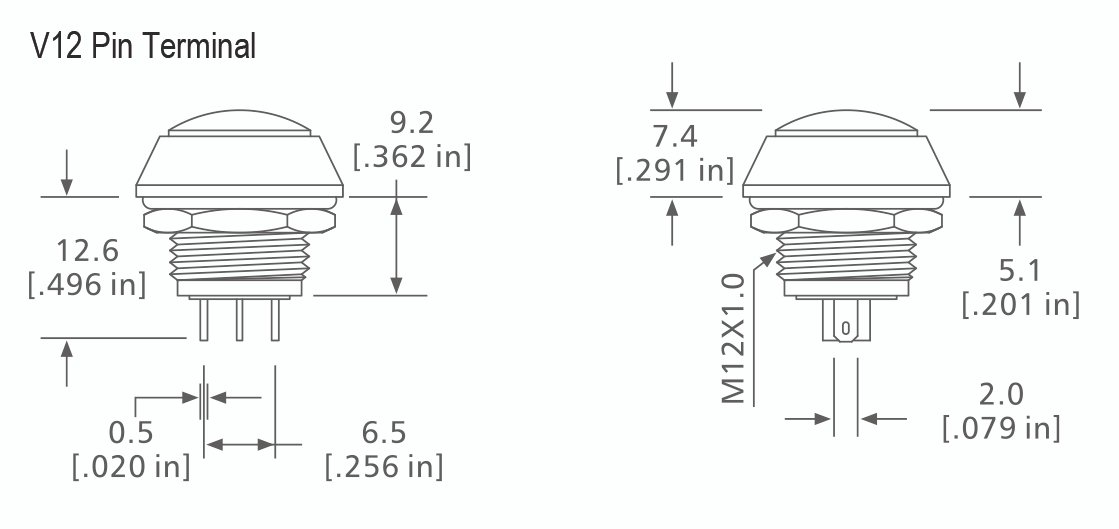

Mounting Hole Size:Dia 12mm
Specification:0.6kgs/box
Transport Package:50PCS/Box
Selling Units:Single item
Single package size:3X3X3 cm
Single gross weight:0.015 KG
